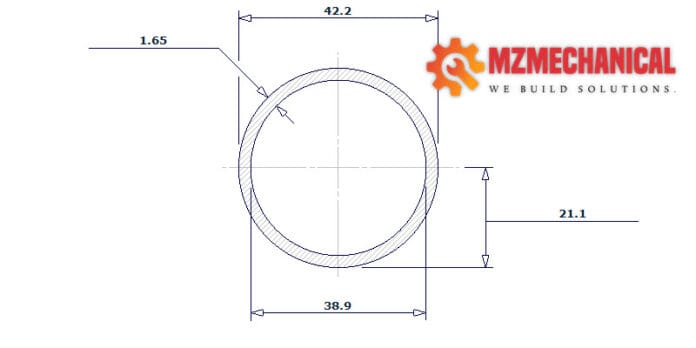

Pipe DN32 SCH 5S – 1-1/4 inch
- Standard: ANSI/ASME B36.10 (Steel Pipe)
- Size NPS: NPS 1-1/4 Inch
- Size DN: DN32 mm
- Outside Diameter (Pipe OD): 42.2 mm
- Inside Diameter (Pipe ID): 38.9 mm
- Pipe Wall Thickness: 1.65 mm
- Pipe Weight: 1.65 Kilogram per meter (kg/m)
- Weight full with water: 2.83 Kilogram per meter (kg/m)
*NPS = Nominal pipe size(inch) / DN = Diameter nominal(mm)
